July in the Wasatch means the same thing everywhere: moon dust on top, hardpack underneath, and hands that are working overtime to hold a line. If your forearms are cooked by the second descent at Corner Canyon or your front wheel feels vague on Crest, your cockpit is telling you something before your suspension does.

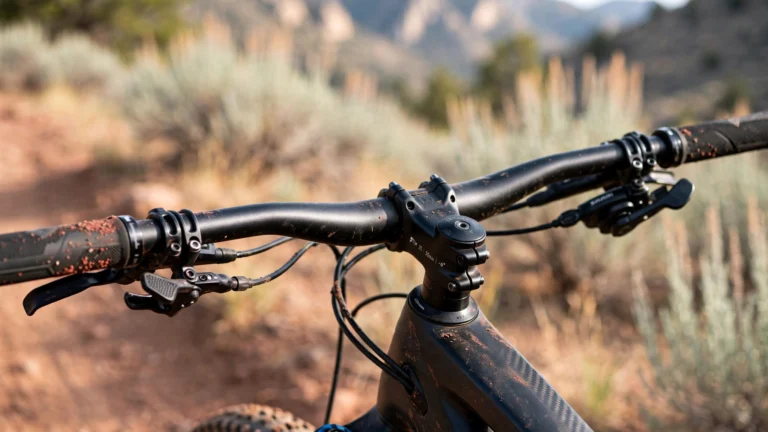

Your bars, stem, brake levers, and grips are the four contact points that turn shoulder and hip input into tire grip. Get them right and the bike feels shorter in tight switchbacks and longer when it’s loose. Get them wrong and nothing else you do matters. Here’s a practical garage setup that works for loose-over-hard Wasatch conditions.

Why Your Cockpit Matters More in Dust

On hero dirt, you can get away with almost anything. On July dust, your margin disappears. Small errors in lever angle or bar roll put your wrists in extension, which locks your elbows and shoulders. That kills the micro-movements that keep weight on the front tire.

This is the same reason we talked about in how to stop hand pump and bar slip on hot Wasatch descents – fatigue starts in the hands and climbs fast. A good cockpit lets you brake less hard, with one finger, from a neutral wrist position.

1. Handlebars: Width, Rise, and Roll

Most trail bikes ship with 780-800mm bars. That’s a starting point, not a prescription.

How wide should you actually run?

Stand in a push-up position, comfortable. Measure outer edge to outer edge of your hands. For most riders 5’8″ to 6’0″, that’s 750-780mm. If you regularly clip sage at Wasatch frontside, you’re too wide for the terrain even if you are strong enough.

Start at 760-770mm for Wasatch tech, 780mm if you live on high-speed Park City flow. Test by moving grips inboard 10mm with electrical tape – don’t cut right away. If your chest opens, breathing improves, and you can steer with elbows out without your shoulders shrugging, you’re close.

Rise, sweep, and roll

Rise changes weight on front wheel more than spacers do. If your front tire pushes in loose corners or your hands go numb on flatter Traverse-style trails, try 20-30mm rise instead of 10-15mm. For back issues we covered in why your MTB feels harsh in July and the suspension reset that helps, bar height matters just as much as sag.

Roll is free adjustment. Put the bike on level ground, loosen stem bolts, rotate bars until the markings are centered, then roll them back 3-5 degrees. Upsweep should feel slightly rearward, not vertical. If the back of your hands hurt, you’ve rolled too far forward.

2. Stem: Length, Height, and Steer Feel

For modern Wasatch trail bikes (65-66.5 head angle), 35-50mm is the usable window. Shorter isn’t always more stable – go too short and you lose front wheel load on off-cambers.

Baseline: 40-45mm for 140-160mm bikes, 35-40mm for enduro sleds. Spacers: start with 10-20mm under the stem, not slammed and not towered. Dusty steeps reward a slightly taller front than hero dirt does – it keeps you centered when you shift hips back, not diving over the bar to hold weight on the front.

If you’re between sizes on frame, stem length is your fine tune, not your fix. Better to size down frame and run 45-50mm than stretch a small with 60mm+ in this terrain.

3. Brake Levers: Angle, Reach, and Free-Stroke

This is where most riders lose control without knowing it. On hot July descents, brake drag is already cooking your rotors as we covered in the dusty trail traction setup tweaks guide – lever position dictates how well you can modulate.

Angle: sit on bike, hands on grips, eyes closed, natural wrist angle. Open eyes – brake levers should meet index finger’s first joint without wrist bend. For Wasatch steeps, that is usually 35-45 degrees below horizontal, steeper than most shops set.

Reach: set so one finger bites with pad, not tip, mid-way through lever stroke. If you have small hands, bring reach in early. Large rotors and 4-piston power mean you don’t need leverage from the lever tip.

Clearance: roll shifter and dropper remote so you can hit both without shifting grip. In dust, any extra hand movement equals a chance to lose the front.

4. Grips: Diameter, Compound, and Dust Strategy

Hot Wasatch dust is abrasive. Thin, hard grips slip and spike hand pressure. You want moderate diameter (30-32mm) and a tacky, medium-soft compound that stays grippy when dusty.

Single-clamp grips like the PNW Components Loam Grip give more palm support. Softer waffles like ODI Elite Pro grips are excellent for hand fatigue on long Crest to Canyons days. Replace them mid-summer – $30 of fresh rubber beats arm pump all day.

Pro tip: clean them with water only before a dusty ride. Soap residue plus dust equals slick.

The 10-Minute Garage Setup Sequence

Do this in order – each step affects the next.

1. Square the bars: Center the graphic, set roll neutral, torque stem to spec (usually 5-6 Nm).
2. Set height: 15mm spacers under, bar rolled back 3 degrees, grips fully seated.
3. Dial lever angle: Eyes-closed test, then lock at 40 degrees below horiz for baseline.
4. Reach: One-finger bite at mid-stroke. Adjust bite point if your brakes offer it.
5. Width test: Tape grips 10mm inboard, ride parking lot figure-eights.
6. Ride check: Two identical runs on a short dusty corner. Hands relaxed? Elbows wide? If wrists ache, roll bars back 2 degrees.

Write down your numbers – width, spacer height, lever angle from horizontal (use phone level), reach clicks. Wasatch dust seasons are long; you’ll want to return to what works after servicing.

Common Wasatch Cockpit Mistakes to Skip

• Bars too wide and too low: Feels aggressive in shop, exhausting at mile 12 on Jacob’s Ladder.
• Levers too flat: Looks moto-cool, forces broken wrists on steep chutes.
• Grips worn smooth: If logos are gone, center texture is too. Replace.
• Skipping torque: Carbon bars with over-torqued stems create stress risers you won’t see until July heat plus dust vibration cracks them.

Quick Test Lap: Corner Canyon Parking Lot Drill

Use this before you hit Ghost Falls or Levitate. In a flat lot, do 30 seconds of figure-8s around two water bottles, standing, elbows wide, looking through the turn. Then straight line brake check: accelerate to 10 mph, one-finger front brake only to slow, then rear only. If you can modulate to a stop without wrist angle changing, your levers are right. If your front tire pushes, raise front 5mm or roll bars back.

On trail, commit to one adjustment per lap. Loop Rush or Bonneville Shoreline easy sections twice with same line, changing only bar roll or lever angle. Feel is easier to track than thinking.

FAQ

What bar width is best for Wasatch tight tech?

Most riders 5’6″ to 6’1″ settle at 760-780mm for Wasatch frontside tech. Tape-test 10mm inboard before you cut, and prioritize elbow position over max leverage.

How do I know if my brake levers are too flat?

If your wrists bend backward to reach the levers while standing on a steep pitch, they’re too flat. Rotate them down until a neutral wrist reaches the lever pad at mid-stroke.

Should I raise my bars for loose-over-hard?

Often yes, 5-10mm. A slightly taller front keeps you centered when you push hips back, helping front tire load in off-cambers without washing.
