Walk into any trailhead parking lot and ask about rear shocks and you will start a debate. Coil riders swear nothing tracks the ground like a steel spring. Air riders point at their lighter bikes and adjustable spring curves and wonder what the fuss is about. Here is the honest answer: neither one is universally better. Each wins in different places, and the right choice depends on what you ride and what you notice.

This guide breaks down how each shock works, where each one shines, and what it actually costs to switch, so you can stop guessing and pick the setup that fits your riding.

How each shock works

A rear shock has two jobs. The spring holds you up and absorbs impacts. The damper controls how fast the spring moves, keeping the wheel from bouncing like a pogo stick. Coil and air shocks do the damping job the same way. The difference is entirely in the spring.

An air shock uses a sealed chamber of pressurized air as the spring. Add air and the spring gets stiffer. Remove air and it gets softer. That makes spring rate changes free and easy: all you need is a shock pump. Air also has a naturally progressive spring curve, meaning it ramps up resistance near the end of the travel. That helps prevent harsh bottom outs on big hits.

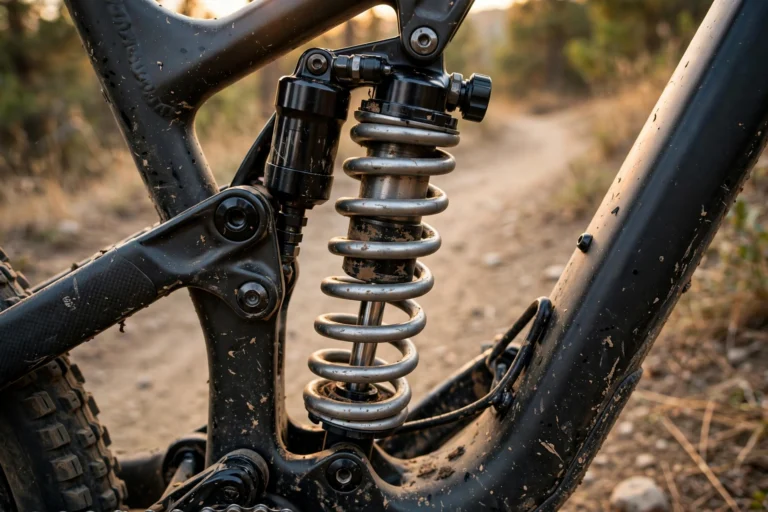

A coil shock uses a steel spring wrapped around the damper body. The spring rate is fixed, so changing it means buying a different spring and swapping it on. Coil springs have a nearly linear spring curve: the same amount of force moves the shock the same distance through most of its travel. That linearity is the whole reason coil fans love them.

Where a coil shock wins

The biggest advantage of coil is sensitivity. A steel spring starts moving with very little force, while an air spring has to overcome seal friction (stiction) before it begins to compress. On small, fast chatter like braking bumps, roots, and loose rocks, that difference is real. The wheel tracks the ground more closely, which means more grip and less skittering.

Coil also stays consistent on long descents. Air shocks heat up as they work, and hot air behaves differently than cool air. On a 10 minute descent the shock you set up in the parking lot can feel different by the bottom. A steel spring does not care about temperature. What you set is what you get, run after run.

Finally, coil is simpler to set up. Set sag with the right spring, set your rebound, and ride. There is no fiddling with volume spacers or air pressure to chase the right feel. If you are the kind of rider who sets suspension once and forgets it, coil rewards you. If your fork is overdue for attention, read our September suspension check: four signs your fork needs service before fall and sort the front end first.

Where an air shock wins

Weight is the obvious one. An air shock can be 200 to 400 grams lighter than a comparable coil setup. On a trail bike where every gram shows up on the climb, that matters. If your rides are pedal heavy and your descents are moderate, the lighter shock is the faster shock.

Adjustability is the deeper advantage. Air pressure changes are free, instant, and reversible. Gaining or losing weight, riding a bike park one weekend and an XC loop the next, or just experimenting with feel: air lets you adapt in minutes. A coil rider making the same change is ordering a new spring and waiting on shipping.

Air also fits more frames. Coil shocks are physically longer for a given stroke in some sizes, and the spring itself needs clearance around the shock. Some frames simply do not have room for a coil. Air shocks also tend to pair better with frames that have a naturally linear leverage ratio, since the progressive air spring compensates where the frame does not.

What it actually costs to switch

Swapping from air to coil, or the reverse, is not just the price of the shock. Budget shocks start around $300, with premium options like the Fox Float X, RockShox Super Deluxe, Fox DHX2, or RockShox Vivid Coil running $600 to $900. On top of that, plan for mounting hardware (often $30 to $60), and for coil, the spring itself, which may or may not be included.

Fit is the part people forget. Check your frame’s shock dimensions: eye to eye length and stroke must match exactly. Check spring clearance at full compression, especially on frames with tight shock tunnels. And be honest about your frame’s leverage ratio. A very progressive frame can make a coil feel harsh at the end of travel, while a linear frame can make an air shock blow through its mid stroke. A good suspension tuner can advise in five minutes what forums will argue about for weeks.

For most riders, a shock swap sits in the same budget tier as the upgrades that matter most on a mid-tier mountain bike. Spend the money where you will feel it.

Who should ride what

Choose coil if your descents are long, rough, and fast, if you chase traction on loose and technical terrain, if you are heavier than average and tired of running high air pressures, or if you set suspension once and want it to stay put. Downhill oriented trail riders and enduro racers are the classic coil audience.

Choose air if your rides are climb heavy, if you value light weight, if you like to experiment with setup, or if your frame will not fit a coil. XC riders, weight conscious trail riders, and anyone who changes spring rate with the seasons will be happier on air.

And if you are new to full suspension, ride what came on the bike. A stock air shock set up properly will teach you more about what you want than any internet debate. When you can describe exactly what your current shock does wrong, then you are ready to choose.

FAQ

Is a coil shock better for beginners?

Not necessarily. Beginners benefit most from a shock that is easy to adjust, and air shocks win there. A poorly chosen coil spring will feel worse than a decent air setup. Learn on air, then consider coil when you know what feel you are chasing.

Can I put a coil shock on any mountain bike frame?

No. The shock’s eye to eye length and stroke must match the frame spec, and the spring needs physical clearance at full compression. Some frames also have leverage ratios that pair poorly with a linear coil spring. Check with the frame maker or a suspension shop before buying.

Does a coil shock need more maintenance?

Damper service intervals are similar for both. The difference is setup maintenance: air shocks need periodic pressure checks and seal care, while coil shocks need the right spring for your weight, which only changes if you do.
